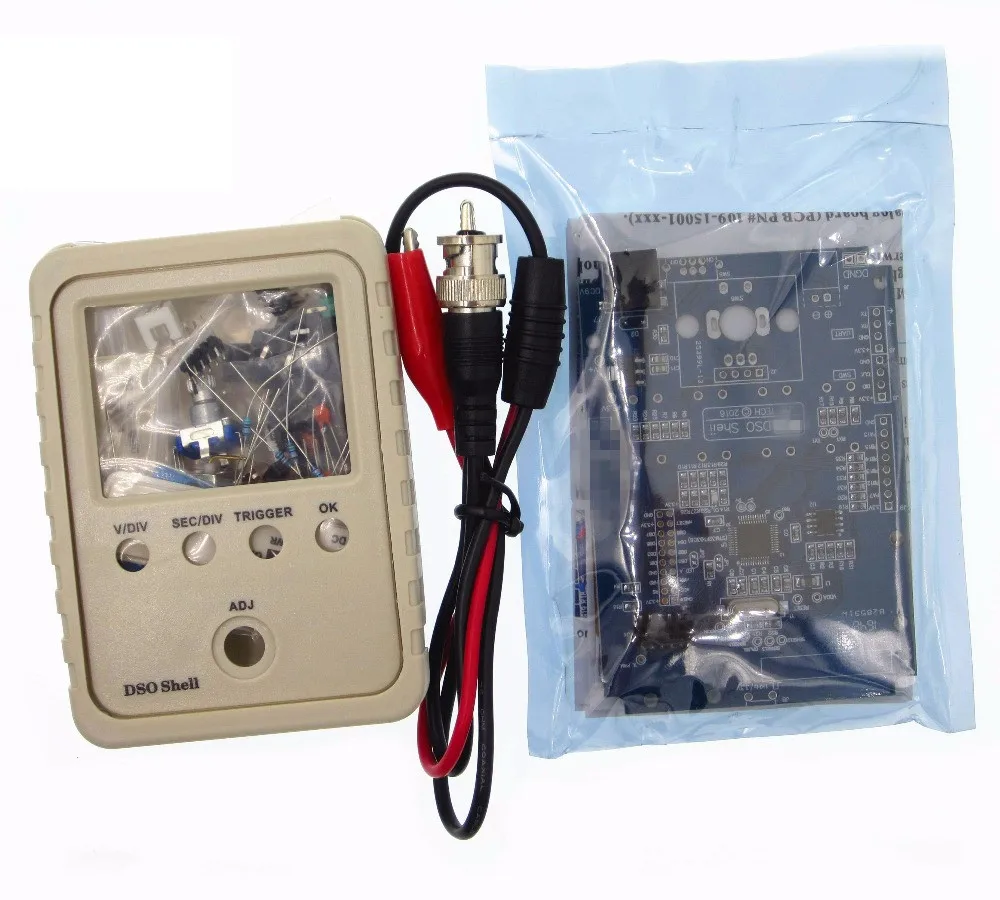

HAILANGNIAO 1set/units Orignal Tech DSO150 15001Ok DSO-SHELL DS0150 DIY Digital Oscilloscope
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
Guarantees: On-time Delivery 60 days
This DIY digital oscilloscope equipment adopts ARM Cortex-M3 processor and with 2.4-inch TFT display and protecting case. It is easy and dependable for circuit operation. It could actually show waveform parameters, akin to frequency, interval, pulse width, obligation ratio, MAX./MIN./AVG./Peak-Peak/digital values.
Undertake ARM Cortex-M3 processor (STM32F103C8), and embody a 2.4-inch colour TFT show display.
Used for secondary improvement on the idea of this equipment, for instance, it may be modified to Millivoltmeter, information loggers.
Include directions, simple to put in and function.
With Auto/Regular/Single set off modes, simple to seize the second waveform.
Accessible rising or falling edge set off.
Observable earlier waveform earlier than set off(unfavourable delay).
Can freeze waveform show at any time(HOLD perform).
With waveform parameter digital show, together with frequency, interval, pulse width, obligation ratio, MAX./MIN./AVG./Peak-Peak/digital values.
Waveform storage perform: won’t lose the waveform after energy off.
Brief-circuit and open-circuit detection: will help the person discover out the soldering error.
TFT controller recognition perform.
The SMD has been soldered, extra appropriate for digital newbie.
Most Actual-time Sampling Price: 1MSa/s
Analog Bandwidth: 0-200KHz
Sensitivity Vary: 5mV/div-20mV/idv
Most Enter Voltage: 50Vpk (1X probe)
Enter Impedance: 1M ohms/20pF
Accuracy: 12 Bits
Report Size: 1024 factors
Coupling Modes: DC / AC / GND
Time Base Vary: 500s/Div – 10us / Div
Set off Modes: Auto, Regular, and Single
Set off Place: Middle of Buffer
Provide Voltage: DC 9V(8-10V)
Present Consumption:~120mA @ 9V
Predominant Board Dimension: 94 * 65mm / 3.7 * 2.56in
Analog Board Dimension: 65 * 47mm / 2.56 * 1.85in
Display screen Dimension: 52 * 40mm / 2 * 1.57in
Package deal Dimension: 14.5 * 10 * 3.7cm / 5.7 * 3.94 * 1.45in
Package deal Weight: 179g / 6.33oz
Package deal Record:
1 * Digital Oscilloscope DIY Equipment
1 * Probe
1 * DIY Case
3 * Person Handbook(English)
